Custom Guitar & Bass Wiring Diagram Service

Can't find the exact guitar wiring diagram you need in our online archive? We also offer custom drawn guitar or bass wiring diagrams designed to your specifications.  Our wiring techs can design a custom wiring diagram for any brand and type of pickups with your choice of custom controls and options. Easy to read, affordable and delivered by email for FREE!

 Custom Diagram Order Form Page



  • Strat Style Guitar Wiring Diagram

    Strat Style Guitar Wiring Diagram

    Strat style guitar wiring diagram with three single coils, 5-way lever switch, 1 volume, 2 tones. Typical standard Fender Stratocaster guitar wiring with master volume plus 1 neck tone control and one middle pickup tone control. Please Note: This...

    $0.00
  • Strat w/ Eric Clapton Mid Boost Circuit

    Strat w/ Eric Clapton Mid Boost Circuit

    Strat style guitar wiring diagram with three single coils, 5-way lever switch, 1 volume, 1 tone control and the Fender Eric Clapton mid boost circuit. Similar to the Eric Clapton Signature Stratocaster but with a standard tone control in place of the TBX...

    $0.00
  • Strat w/ Eric Clapton Mid Boost Circuit & TBX Tone Control

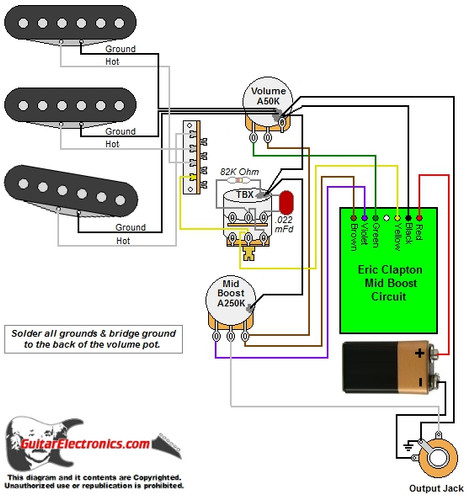

    Strat w/ Eric Clapton Mid Boost Circuit & TBX Tone Control

    Strat wiring diagram with three single coils, 5-way lever switch, 1 volume, 1 TBX tone control and the Eric Clapton mid boost circuit with mid boost control. Traditional wiring for the Eric Clapton Signature Stratocaster as well as other models that use...

    $0.00
  • Strat w/ Neck+Bridge & Neck+Mid+Bridge Options (7 Sound)

    Strat w/ Neck+Bridge & Neck+Mid+Bridge Options (7 Sound)

    7 sound Strat wiring diagram with three single coils, 5-way lever switch, 1 volume and 2 tones. Strat with a push/pull switch on the neck tone control to allow neck+bridge and neck+middle+bridge pickup combinations. With the push/pull switch down, the...

    $0.00
  • Strat w/ Single Master Tone Control

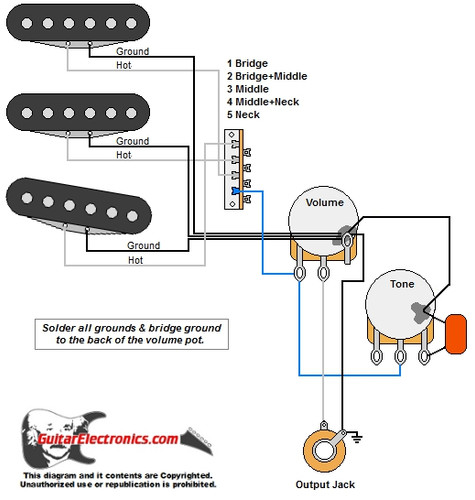

    Strat w/ Single Master Tone Control

    Strat style wiring diagram with three single coils, 5-way lever switch, 1 volume and 1 tone. Strat style guitar with a single master tone control. This is a common modification used to free up the second tone pot location for an additional switch or...

    $0.00
  • Strat w/ TBX Tone Control

    Strat w/ TBX Tone Control

    Guitar wiring diagram with three single coils, 5-way lever switch, one standard tone for the neck pickup and one Fender TBX tone control that controls the middle and bridge pickups. Typical Fender American Standard Stratocaster wiring. Click diagram...

    $0.00
