Custom Guitar & Bass Wiring Diagram Service

Can't find the exact guitar wiring diagram you need in our online archive? We also offer custom drawn guitar or bass wiring diagrams designed to your specifications.  Our wiring techs can design a custom wiring diagram for any brand and type of pickups with your choice of custom controls and options. Easy to read, affordable and delivered by email for FREE!

 Custom Diagram Order Form Page



  • 1 Humbucker/1 Volume/1 Tone

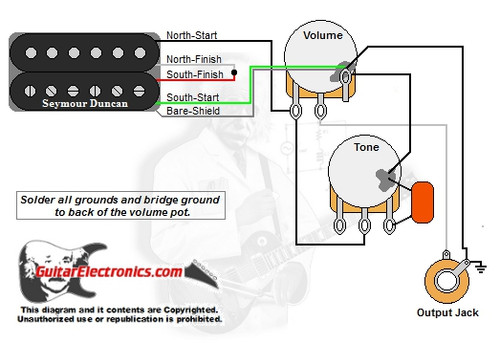

    1 Humbucker/1 Volume/1 Tone

    Basic guitar wiring diagram with one humbucker, one volume control and one tone control. Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to...

    $0.00
  • 1 Humbucker/1 Volume/1 Tone/5-Way Lever Switch

    1 Humbucker/1 Volume/1 Tone/5-Way Lever Switch

    Guitar wiring diagram with one humbucker, one volume control and one tone control and with a 5-position lever style Super switch switch that selects 5 different sounds: 1.series in-phase 2. North coil 3.parallel in-phase 4.South coil 5.series...

    $0.00
  • 1 Humbucker/1 Volume/1 Tone/5-Way Rotary Switch

    1 Humbucker/1 Volume/1 Tone/5-Way Rotary Switch

    Guitar wiring diagram with one humbucker and one volume control with a 5-position rotary switch switch that selects 5 different sounds: 1.series in-phase 2. North coil 3.parallel in-phase 4.South coil 5.series reverse-phase. Ready to start?...

    $0.00
  • 1 Humbucker/1 Volume/1 Tone/Series-North-Parallel

    1 Humbucker/1 Volume/1 Tone/Series-North-Parallel

    Guitar wiring diagram with one humbucker, one volume and one tone control and a mini switch that selects: series humbucker/single coil North/parallel humbucker. Don't forget the Wire, Solder, Shielding & Supplies. Copyright©...

    $0.00
  • 1 Humbucker/1 Volume/1 Tone/Series-Parallel

    1 Humbucker/1 Volume/1 Tone/Series-Parallel

    Guitar wiring diagram with one humbucker and one volume and one tone control. A push pull switch on the volume selects: series humbucker (down) or parallel humbucker (up). Don't forget the Wire, Solder, Shielding & Supplies...

    $0.00
  • 1 Humbucker/1 Volume/1 Tone/Series-South-Parallel

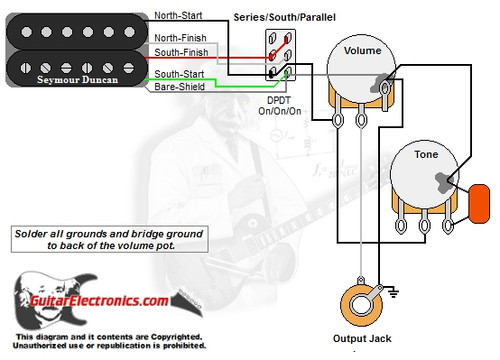

    1 Humbucker/1 Volume/1 Tone/Series-South-Parallel

    Guitar wiring diagram with one humbucker, one volume and one tone control and a mini switch that selects: series humbucker/single coil South/parallel humbucker. Don't forget the Wire, Solder, Shielding & Supplies. Copyright©...

    $0.00
  • 1 Humbucker/1 Volume/1 Tone/South Coil Treble Cut

    1 Humbucker/1 Volume/1 Tone/South Coil Treble Cut

    Guitar wiring diagram with one humbucker, one volume and one tone control. The tone is wired to only one half of the humbucker. Turning the tone will only cut the treble frequencies of the South coil giving the entire pickup a unique and strong...

    $0.00
  • P-Bass Style Wiring Diagram

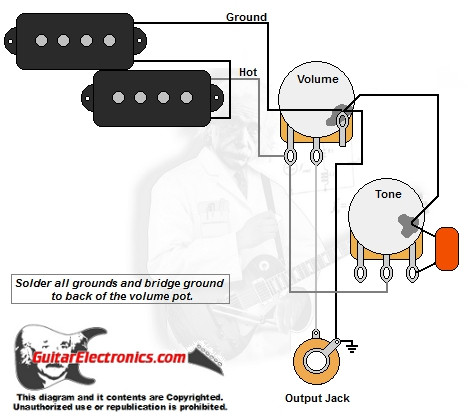

    P-Bass Style Wiring Diagram

    Wiring diagram with one P-bass style split pickup, 1 volume and 1 tone. Typical P-Bass wiring diagram.Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use...

    $0.00
