1 Humbucker/1 Volume/1 Tone/Series-South-Parallel

$0.00

1 Humbucker/1 Volume/1 Tone/Series-South-Parallel

1 Humbucker/1 Volume/1 Tone/Series-South-Parallel

$0.00

Pin It

Share

Product Description

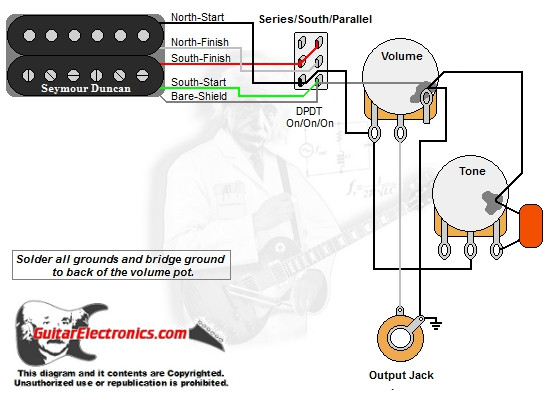

Guitar wiring diagram with one humbucker, one volume and one tone control and a mini switch that selects: series humbucker/single coil South/parallel humbucker. Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.

Download printable PDF version.

Click to view wire color codes for all brands of humbuckers.
