Strat w/ Neck+Bridge & Neck+Mid+Bridge Options (7 Sound)

Product Description

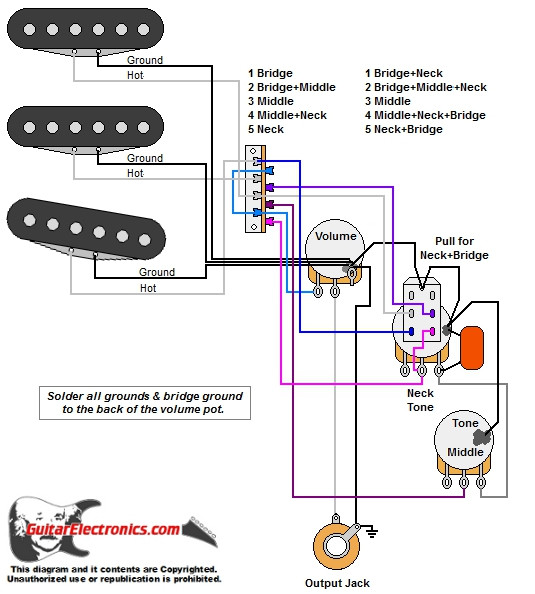

7 sound Strat wiring diagram with three single coils, 5-way lever switch, 1 volume and 2 tones. Strat with a push/pull switch on the neck tone control to allow neck+bridge and neck+middle+bridge pickup combinations. With the push/pull switch down, the controls provide standard Strat style switching and controls. Click diagram image to open/view full size version.   Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized replication is prohibited.
