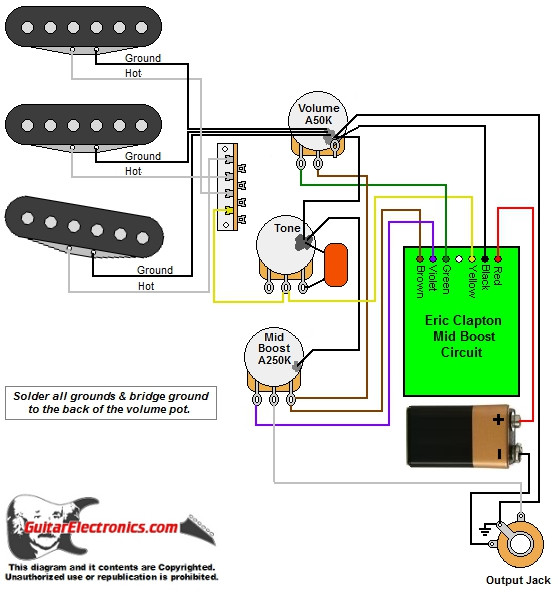

Overview Reviews Product Description Strat style guitar wiring diagram with three single coils, 5-way lever switch, 1 volume, 1 tone control and the Fender Eric Clapton mid boost circuit. Similar to the Eric Clapton Signature Stratocaster but with a standard tone control in place of the TBX control. Click diagram image to open/view full size version. Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized replication is prohibited. Product Videos Custom Field Product Reviews Write a Review Write a Review × GuitarElectronics.com Strat w/ Eric Clapton Mid Boost Circuit Rating * Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best) Name Review Subject * Comments *
