1 Humbucker / 1 Volume

Custom Designed Wiring Diagrams

Custom Guitar & Bass Wiring Diagram Service

Can't find the exact guitar wiring diagram you need in our online archive? We also offer custom drawn guitar or bass wiring diagrams designed to your specifications.  Our wiring techs can design a custom wiring diagram for any brand and type of pickups with your choice of custom controls and options. Easy to read, affordable and delivered by email for FREE!

 Custom Diagram Order Form Page



  • 1 Humbucker/1 Volume

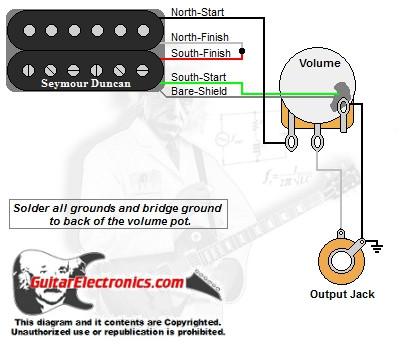

    1 Humbucker/1 Volume

    Basic guitar wiring diagram with one humbucker and one volume control. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to...

    $0.00
  • 1 Humbucker/1 Volume/5-Way Lever Switch

    1 Humbucker/1 Volume/5-Way Lever Switch

    Guitar wiring diagram with one humbucker and one volume control with a 5-position lever style Super switch switch that selects 5 different sounds: 1.series in-phase 2. North coil 3.parallel in-phase 4.South coil 5.series reverse-phase. Ready to...

    $0.00
  • 1 Humbucker/1 Volume/5-Way Rotary Switch

    1 Humbucker/1 Volume/5-Way Rotary Switch

    Guitar wiring diagram with one humbucker and one volume control with a 5-position rotary switch switch that selects 5 different sounds: 1.series in-phase 2. North coil 3.parallel in-phase 4.South coil 5.series reverse-phase.  Ready to...

    $0.00
  • 1 Humbucker/1 Volume/North Coil-Humbucker-South Coil

    1 Humbucker/1 Volume/North Coil-Humbucker-South Coil

    Guitar wiring diagram with one humbucker and one volume control with 3 way on/off/on mini switch that selects: North single coil / Humbucker / South singe coil. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies...

    $0.00
  • 1 Humbucker/1 Volume/Pull for North Single Coil

    1 Humbucker/1 Volume/Pull for North Single Coil

    Guitar wiring diagram with one humbucker and one volume control with push pull switch for coil split (North). Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized...

    $0.00
  • 1 Humbucker/1 Volume/Pull for South Single Coil

    1 Humbucker/1 Volume/Pull for South Single Coil

    Guitar wiring diagram with one humbucker and one volume control with push pull switch for coil split (South). Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies to do the job right. Copyright©...

    $0.00
  • 1 Humbucker/1 Volume/Pull for Tone

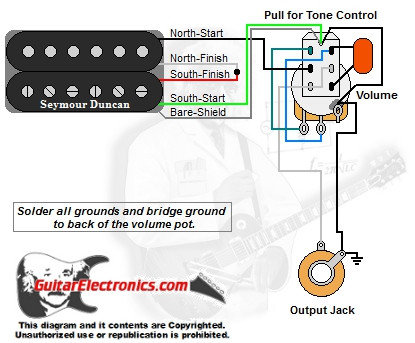

    1 Humbucker/1 Volume/Pull for Tone

    Guitar wiring diagram with one humbucker and one volume control. Push pull switch on volume converts volume pot to a tone pot. With the the pot in tone mode (up) the volume will be 100% full on. Ready to start? Don't forget the Wire,...

    $0.00
  • 1 Humbucker/1 Volume/Series-North-Parallel

    1 Humbucker/1 Volume/Series-North-Parallel

    Guitar wiring diagram with one humbucker and one volume with mini switch that selects: Series Humbucker/Single Coil North/Parallel Humbucker. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright©...

    $0.00
  • 1 Humbucker/1 Volume/Series-Parallel

    1 Humbucker/1 Volume/Series-Parallel

    Guitar wiring diagram with one humbucker and one volume and push pull switch for series and parallel mode. With the switch down the humbucker is in series mode (full power & tone) With the switch up, the pickup is in parallel humbucker mode...

    $0.00
  • 1 Humbucker/1 Volume/Series-Parallel & Coil Tap South

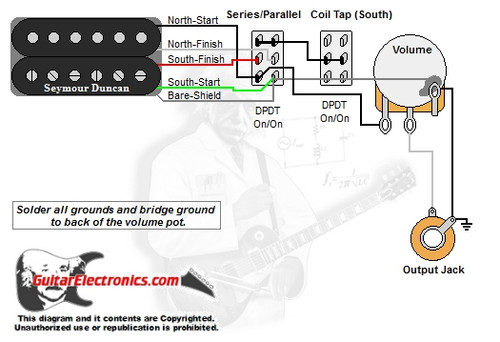

    1 Humbucker/1 Volume/Series-Parallel & Coil Tap South

    Guitar wiring diagram with one humbucker, one volume control and two On/On mini switches. One switch selects series humbucker or parallel humbucker and one switch selects humbucker mode or single coil mode (South coil). Ready to start? Don't...

    $0.00
  • 1 Humbucker/1 Volume/Series-South-Parallel

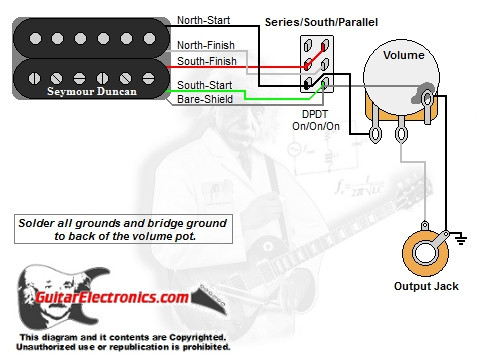

    1 Humbucker/1 Volume/Series-South-Parallel

    Guitar wiring diagram with one humbucker and one volume with mini switch that selects: Series Humbucker/Single Coil South/Parallel Humbucker. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright©...

    $0.00
