Strat w/ Single Master Tone Control

Name: Strat w/ Single Master Tone Control
Brand: GuitarElectronics.com
SKU: WDUSSS5L1101
Availability: OutOfStock
Rating: 5 (4 reviews)

MSRP:

$0.00

(You save )

(4 reviews) Write a Review

Description

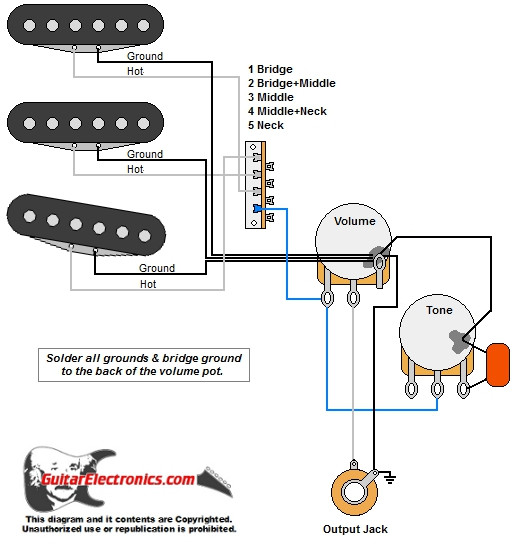

Strat style wiring diagram with three single coils, 5-way lever switch, 1 volume and 1 tone. Strat style guitar with a single master tone control. This is a common modification used to free up the second tone pot location for an additional switch or optional control. Click diagram image to open/view full size version. Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized replication is prohibited.

Additional Details

SKU:: WDUSSS5L1101
UPC:

4 Reviews

5
Wiring diagram for ibanez blazer SSS 1 VOLUME 1 TONE

Published by David B. on Oct 30th 2025

This is perfect
5
wiring diagram

Published by Wally Garfield on Aug 18th 2025

I have never had a bad wiring diagram from this source. Thank you for this!
5
perfect diagram

Published by Jeff on Oct 20th 2024

Thanks for making this available. Perfect for my project (a Strat pickup layout in a Jazzmaster body, where I needed to use the space for the extra tone control for the input jack instead).
5
Diagrams

Published by Bobby Yarbray on Sep 14th 2024

These are the best diagrams on the net.....I've used them many, many times .....and they provide them for free! You simply can't find a better deal.
