2 Humbuckers/5-Way Rotary Switch/1 Volume/1 Tone/06

GuitarElectronics.com

(2 reviews) Write a Review
$0.00
SKU:
WD2HH5R11_06

Product Overview

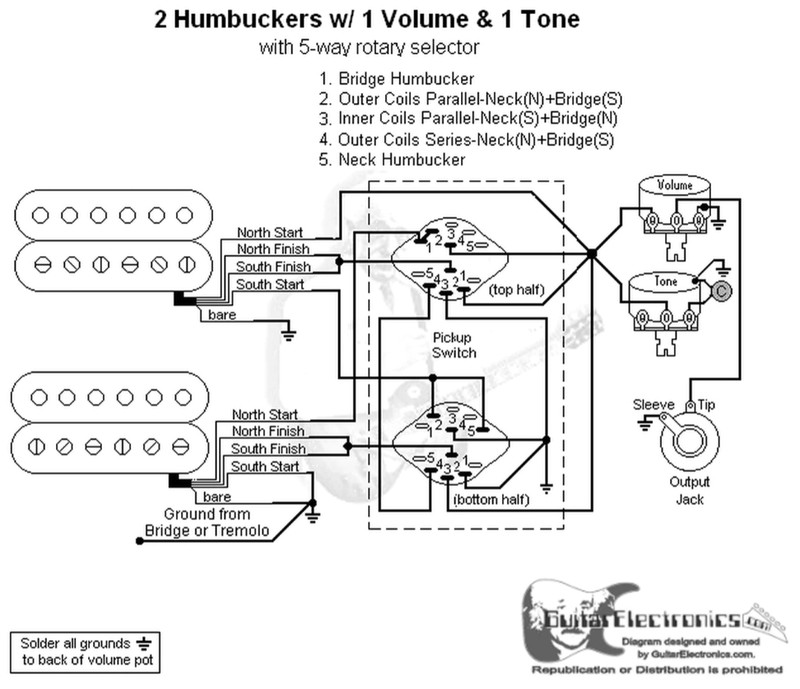

Guitar wiring diagram with 2 humbuckers, 5-way 4-pole rotary switch, one volume and one tone control. Same 5 pickup configurations as the PRS 5 way rotary switching. Note: If you are using standard humbuckers (Seymour Duncan, Gibson, etc.) you must mount the pickups with the screw pole coils as shown in the diagram to get "Inner" and "Outer" coils in switch positions 2, 3 & 4. Custom 5-way switching: 1. Bridge Humbucker 2. Outer Coils Parallel-Neck(N)+Bridge(S) 3. Outer Coils Series-Neck(N)+Bridge(S) 4. Inner Coils Parallel-Neck(S)+Bridge(N) 5. Neck Humbucker. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.

View related parts for this diagram below.

Reviews

(2 reviews) Write a Review

2 Reviews Hide Reviews Show Reviews

  • 5
    Exactly what i was needing

    Posted by Aranos on Apr 10th 2016

    Use it for a PRS Archtop II which I am coverting from a two pickup , two conductor, three way switch; to a two pickup, four conductor, 5 way switch, more versatile guitar for Jazz/Funk/R&B venues. ...Thanks ya'll! I can't wait to hear how it is going to sound/perform....When is done I'll let you know.

  • 5
    Very clear schematic

    Posted by Pete Maran on Mar 28th 2015

    Shows wiring and pickup combinations of the1994 PRS rotary switch. Thanks.
