2 Humbuckers/5-Way Rotary Switch/1 Volume/1 Tone/05


(No reviews yet) Write a Review

Product Overview

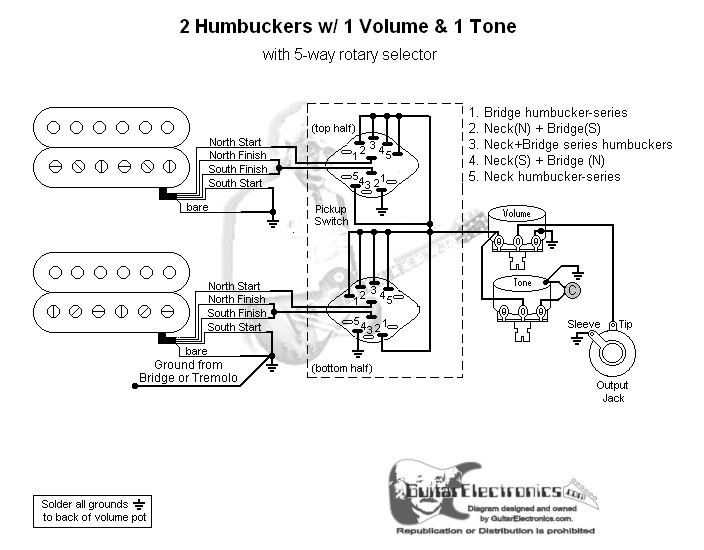

Guitar wiring diagram with 2 humbuckers, 5-way 4-pole rotary switch, one volume and one tone control. Custom 5-way switching: 1. Bridge Humbucker (series) 2. Bridge(S) + Neck(N) (parallel) 3. Bridge Series Humbucker + Neck Series Humbucker 4. Neck(S) + Bridge(N) (parallel) 5. Neck Humbucker (series). Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.

View related parts for this diagram below.
