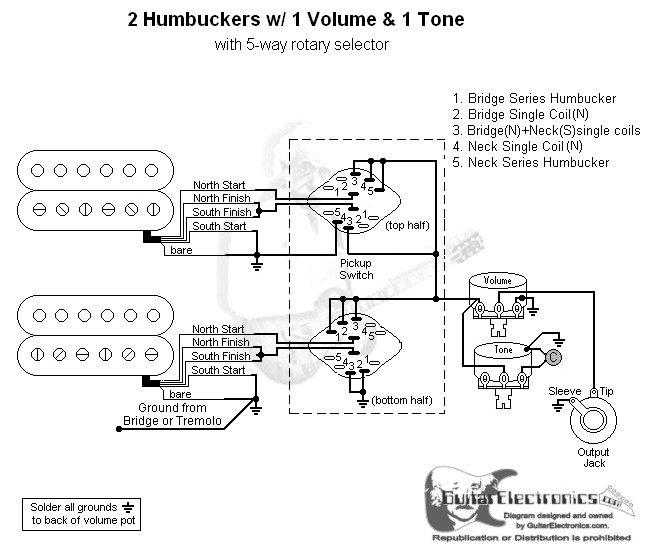

Basic guitar wiring diagram with 2 humbuckers, 5-way rotary switch, one volume and one tone control. Custom 5-way switching: 1. Bridge Series Humbucker 2. Bridge Single Coil (North) 3. Bridge(N) + Neck(S) 4. Neck Single Coil (North) 5. Neck Series Humbucker. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.
