Description

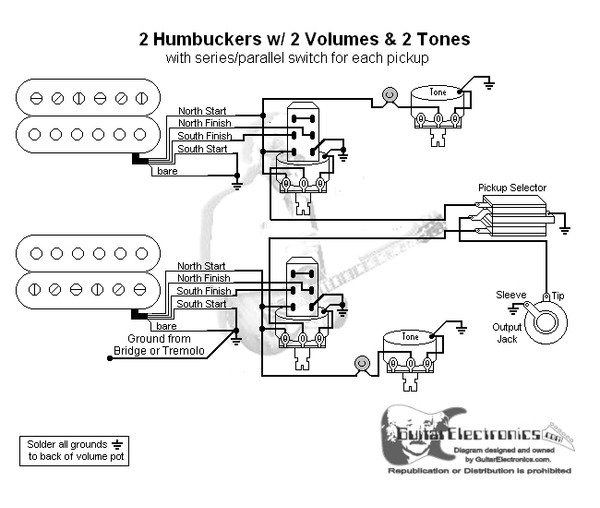

Gibson style guitar wiring diagram with 2 humbuckers, 3-way toggle switch, two volumes and two tone controls, plus a push/pull switch on each pickups volume control to select series or parallel mode. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.
View related parts for this diagram below.
Additional Details
- SKU:
- WD2HH3T22_04
