2 Humbuckers/3-Way Toggle Switch/2 Volumes/2 Tones/Individual Coil Taps

GuitarElectronics.com

SKU:
WD2HH3T22_02
MSRP:
$0.00
(You save )
(5 reviews) Write a Review
2 HBs/3-Way Toggle/2 Vol/2 Tones/Individual Coil Taps

Description

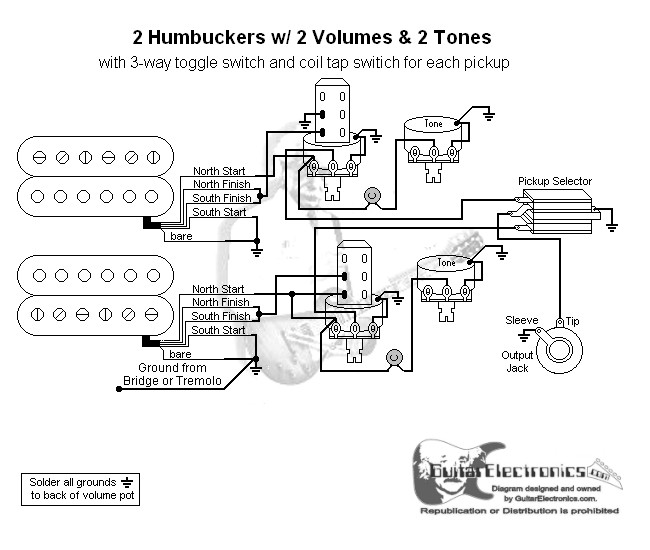

Guitar wiring diagram with 2 humbuckers, 3-way toggle switch, two volumes and two tone controls, two tone controls. Gibson style guitar with a push/pull switch on the neck pickup volume to switch the neck humbucker single coil mode (North) and a push/pull switch on bridge pickup volume to control to switch the bridge pickup between humbucker and single coil mode (South). Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.

View related parts for this diagram below.

Related Products

5 Reviews

  • 5
    My fav website

    Published by George on Apr 23rd 2015

    Best wiring diagrams on the internet bar none@

  • 5
    Good work!

    Published by Clem on Dec 17th 2014

    Nice n' simple diagram!

  • 5
    Simple and perfect.

    Published by Mark on Apr 18th 2014

    I bookmarked this site for future refernce. I'LL BE BACK

  • 5
    Very good!

    Published by M. Fuhrmann on Oct 28th 2013

    Easy and effective build. Gives you 8 different soundoptions.

  • 5
    exelent diagram

    Published by joseph fournier on Mar 27th 2013

    so simple a 12 yr old would have no trouble following it
