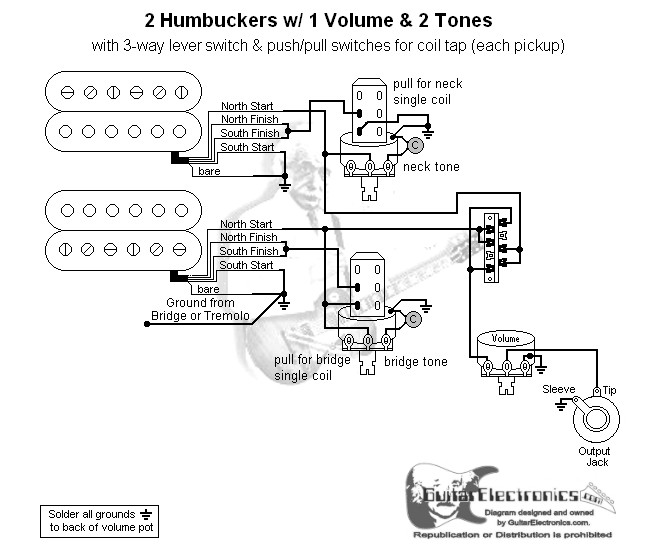

Guitar wiring diagram with 2 humbuckers, 3-way lever switch, one volume and two tone controls, one tone control plus a push/pull switches to select between humbucker and single coil mode for each pickup. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.
