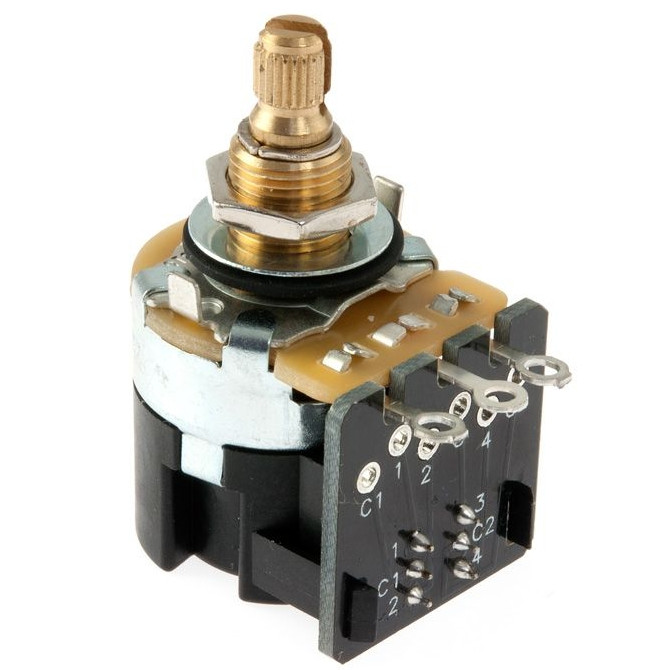

High quality CTS 250K audio taper pot with Push/Pull DPDT switch. Use to add phase, coil tapping, series/parallel and other custom options. Short body height and side mounted contacts require less space than standard push/pull pots (1” depth ) making them ideal for thin bodied guitars with a shallow body cavity.
- Low capacitance heavy duty carbon resistive element provides noise-free audio and a long life.
- Tight tolerance of +10%/-10% prevents tone loss from load mismatches and low pot values.
- Solid brass shaft and bushing provides a smooth feel, noise free operation and longer service life than aluminum shafts.
- Fine spline (USA) shaft for use as a direct upgrade/replacement in most American guitars.
- Includes friction washer, top washer & mounting nut.
|Tolerance:||+/-10%||Pot Diameter:||15/16" (.9375")|
|Shaft Material:||Brass||Required Cavity Depth:||1" (1.0")|
|Shaft Type:||Split Knurled||Threaded Shaft Length:||3/8" (.375")|
|Spline Count(Type):||24 (Fine)||Threaded Shaft Material:||Brass|
|Spline Height:||3/8" (.375")||Threaded Shaft Diameter:||3/8" (.375")
5 Reviews Hide Reviews Show Reviews
Well made and mechanically sound however it is a little tough to solder.
This pot and switch combo is the absolute best. The pot retains that CTS quality we all know and trust. The taper is perfect, and it all sounds great. The push pull switch feels great...like it will last a lifetime. What puts this above and beyond the rest is the PCB. It’s small enough to fit in any setup and easy to solder and understand. Use a quality soldering iron with the right tip, and it’s a cinch! The possibilities are endless with this thing as well. This was my first order from GuitarElectronics but will certainly not be my last. Their prices are low, customer service excellent and shipping is fast. What more could you need or want? Do it.
Top quality, smooth acting pot and precise feel to the switch section. Clearly marked contacts for switch section makes installation a breeze. I'll be buying more of these.
Every CTS pot I've come across is superior. I wanted to use this as a combination pickup selector and volume pot, and once I discovered the correct way to solder the leads in place, it worked spectacularly well. Switch feel in both directions is perfect.
These are great, and I have used them in a couple builds. They are quality built and look great. My one complaint would be that the area to make the solder connections along the C1, 1, 2, 3, 4, and C2 points requires some precision. A good iron with a fine point tip will be your best friend with these.
