2 Humbuckers/3-Way Toggle Switch/2 Volumes/1 Tone

GuitarElectronics.com

(7 reviews) Write a Review
$0.00
SKU:
WD2HH3T21_00

Product Overview

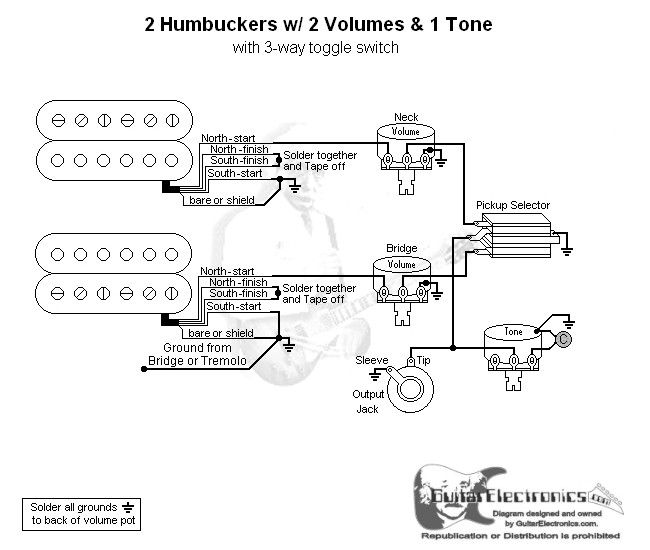

Basic guitar wiring diagram with 2 humbuckers, 3-way Toggle switch, two volumes and one tone control. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.

View related parts for this diagram below.

Reviews

(7 reviews) Write a Review

7 Reviews Hide Reviews Show Reviews

  • 5
    2 HUMBUCKERS/3-WAY TOGGLE SWITCH/2 VOLUMES/1 TONE

    Posted by LeadFinger on Aug 24th 2022

    Just what I needed. Thanks! BTW, buy from you because of this.

  • 5
    No Error: in the wiring - traditional LP wiring --

    Posted by M Oz on May 16th 2022

    Actually there is no error in the wiring, this is traditional LP wiring..previous reviewer is correct in that when the switch is in the middle either volume pot will impact the volume on both pickups, turning any volume pot to zero will short the output to the ground...You can switch the pot terminal connections as suggested in that review of course. But then this re-wiring has problems too! In the original diagram each pickup has a constant load (the resistance of the volume pot), if you switch the wiring the load on the pickup will be different at different volume settings, hence the dynamics of the circuit will change...Without getting into too much detail, pick up is basically an LRC circuit, and external connection will affect its electrical response etc...you might wanna try both and see (or hear)....

  • 4
    Error: Wiring of Volume Pots

    Posted by Hal Taylor on Jan 23rd 2022

    There is actually a small error in the diagram - the wire from the pickup should go to the middle terminal (wiper). The way the diagram is currently, turning down the volume on either pickup will impact the volume on both pickups, if the switch is in the center position. Essentially, turning down the volume shorts everything at the switch to ground (in the middle switch position).

  • 5
    Simple

    Posted by Frank on Jul 7th 2016

    Easy to read

  • 5
    Great information.

    Posted by Scott on Sep 19th 2014

    Very helpful for DIY guys like me.

  • 5
    Awesome man!

    Posted by J. D Meilink on Jul 11th 2014

    Thank you very much!

  • 5
    Thx bros

    Posted by Play4Him on Sep 16th 2013

    Very helpful for someone new to guitar electronic work.
