Description

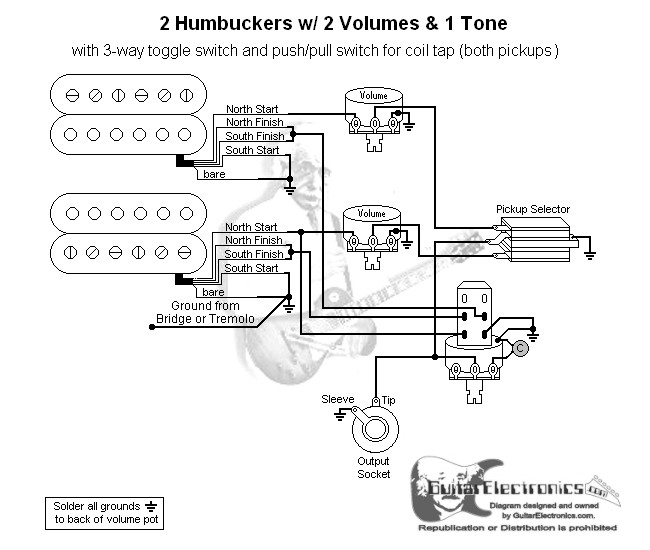

Guitar wiring diagram with 2 humbuckers, 3-way Toggle switch, two volumes and one tone control, one tone control plus a push/pull switch to select between humbucker and single coil mode. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.
View related parts for this diagram below.
Additional Details
- SKU:
- WD2HH3T21_01
