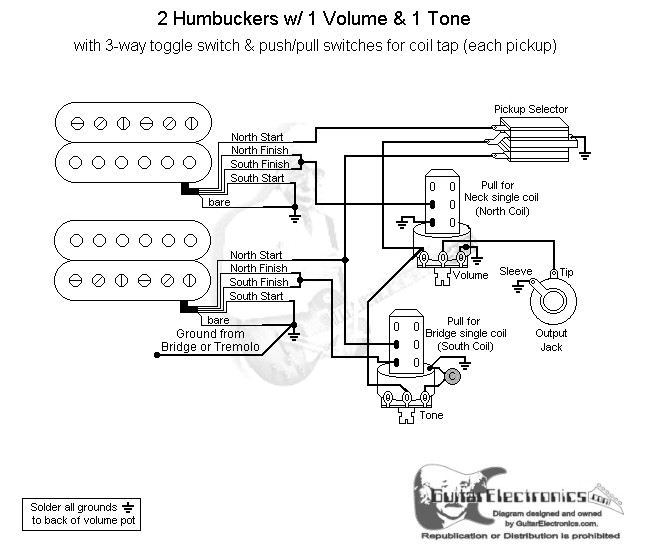

Guitar wiring diagram with 2 humbuckers, 3-way toggle switch, one volume and tone control, one tone control plus push/pull switches for each pickup to select between humbucker and single coil mode. Neck push/pull switch selects the North coil of the neck pickup and the bridge push/pull switch selects the South coil of the bridge pickup. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.
