Product Description

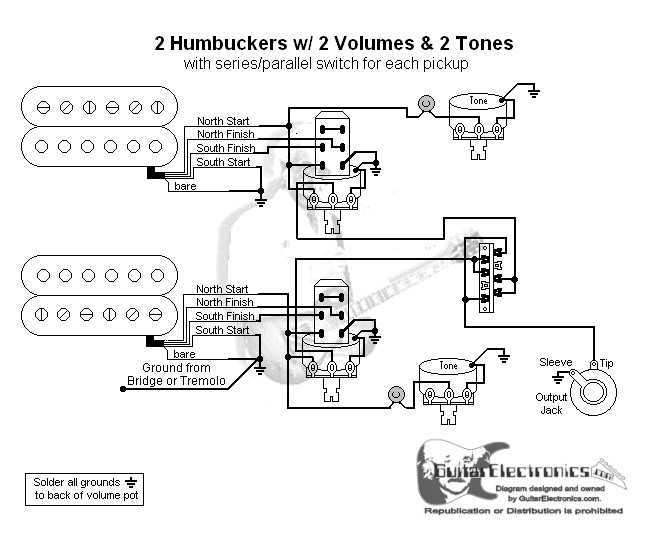

Guitar wiring diagram with 2 humbuckers, 3-way lever switch, two volumes and two tone controls, plus a push/pull switch on each pickups volume control to select to select series or parallel. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.
