Strat w/ Neck Tone That Converts to Neck Volume/Blender (7 Sound)

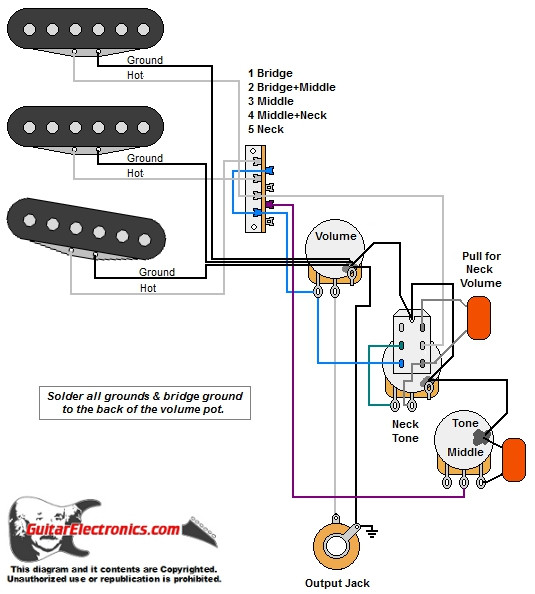

Guitar wiring diagram with three single coils, 5-way lever switch, 1(2) volume, 2(1) tones. Typical Strat style guitar with push/pull pot that converts the neck tone pot to a neck volume control to allow the neck to be blended in with the bridge and/or middle pickup. With the neck tone pulled out, the neck volume works independent of the pickup switch allowing the neck pickup to be blended in with the bridge and/or middle pickup. The master volume will still control the overall volume of all pickups. Click diagram image to open/view full size version.   Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized replication is prohibited.
