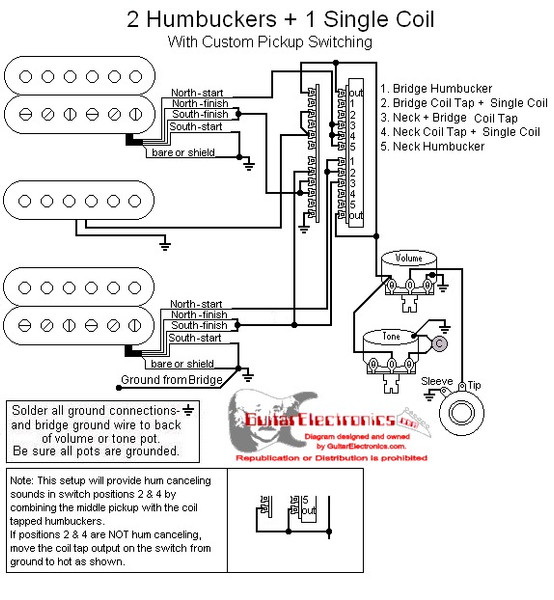

2 Humbuckers/1 Single Coil/5-Way Switch/1 Volume/1 Tone/03

2 Humbuckers, one single coil, custom 5-way/4-pole switch, 1 volume, 1 tone. Typical H/S/H guitar with custom pickup selections. 1. Bridge Humbucker, 2. Bridge Single Coil+Middle, 3. Neck Single Coil+Bridge Single Coil, 4. Neck Single Coil+Middle, 5. Neck Humbucker. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.
