Description

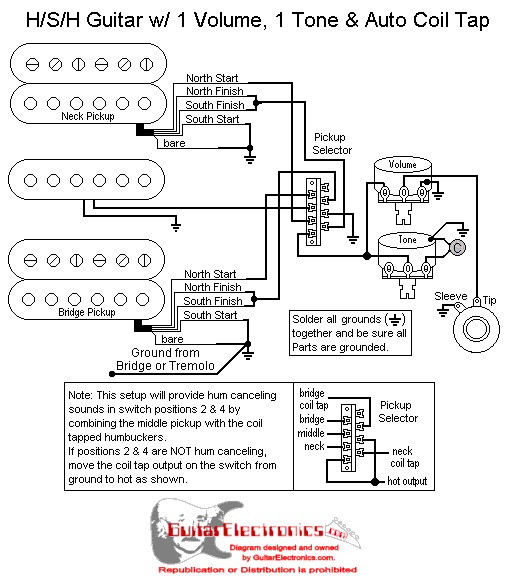

2 Humbuckers, 1 single coil, 5-way lever switch, 1 Volume, 1 Tone. Typical H/S/H guitar with auto coil tap switching in positions 2 & 4. 1. Bridge Humbucker, 2. Bridge Single Coil+Middle, 3. Middle, 4. Neck Single Coil+Middle, 5. Neck Humbucker. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.
View related parts for this diagram below.
Additional Details
- SKU:
- WDUHSH5L1101
