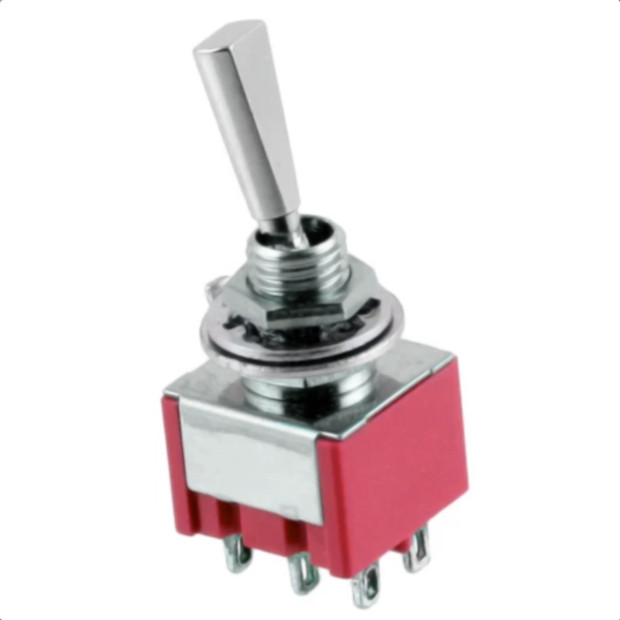

Chrome two position double pole (DPDT) ON/ON mini switch with flat handle. Use for coil splitting, series/parallel, reverse phase and other custom functions. Includes two mounting nuts, top washer and friction washer.
Mini Switch Specs
- Positions/Poles: 2-Position/2-Pole
- Switch Type: DPDT
- Max Volts/Amps: 125V/5A
- Flat Handle (height): 3/8" .375"
- Threaded Shaft Length: 5/16" .3125"
- Threaded Shaft Diameter: 1/4" .25"
- Cavity Depth Required: 5/8" (.625")
1 Review Hide Reviews Show Reviews
This switch works exactly as expected. I’ve built two guitars using this switch, one with soldered connections and another with crimp wiring. This switch uses a 2.8mm female connector. The functionality has surpassed my expectations. I use these mini switches much more than I thought I would. Whatever your amp settings are, a quick flip of the switch will give you a sound you wouldn’t have found otherwise. Good useable tone! I designed a guitar to use three mini switches one of them being a phase but I didn’t want to pay the $30.00 for a custom diagram, although I’m glad that service is available. I already drilled the holes so I used this one. https://guitarelectronics.com/2-humbuckers-3-way-toggle-switch-1-volume-2-tones-series-split-parallel-master-series-parallel/ As it turns out, I use the master switch, more than even the 3WT. I can still add the phase switch later if I want but people say it doesn’t do much. I guess I’ll just have to build another guitar :-} I love this website! The free properly labeled diagrams, the excellent pictures and the way everything is organized make it a great resource and the world a better place. Support this great website, and better tone through science, get your parts here!!!
