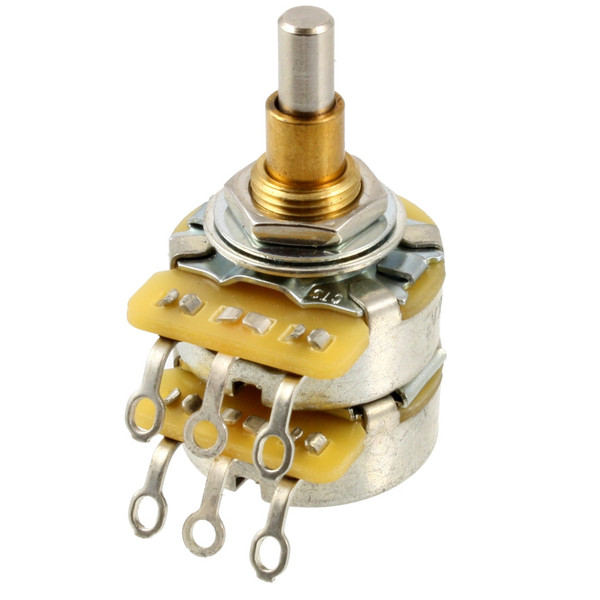

CTS dual concentric/stacked 500K pot. Two CTS 500K audio taper pots stacked in one hole on the guitar. CTS pots feature heavy duty construction and are specifically designed for top performance in guitar volume and tone circuits.
|Top Ohms: ||500K||Top Taper: ||Audio|
|Bottom Ohms:||500K||Bottom Taper:||Audio|
|Tolerance:||+/-20%||Pot Diameter: ||15/16" (.9375")|
|Shaft Material:||Aluminum||Threaded Shaft Length:||1/4" (.25")|
|Shaft Type:||Solid||Threaded Shaft Material:||Brass|
|Top Shaft Diameter:||3/16" (.1875")||Threaded Shaft Diameter: ||3/8" (.375")|
|Bottom Shaft Diameter:||17/64" (.265")||Thread Pitch: ||3/8-32NEF|
1 Review Hide Reviews Show Reviews
Solid, smooth and silent. But only for use in standard thickness plastic faceplates i.e. F...
If your guitar top is wood like 5 ml maple/ other, some routing will be needed to pass the threads through. Guitars with long stem spindles, this means you!
