2 Humbuckers/5-Way Rotary Switch/1 Volume/06

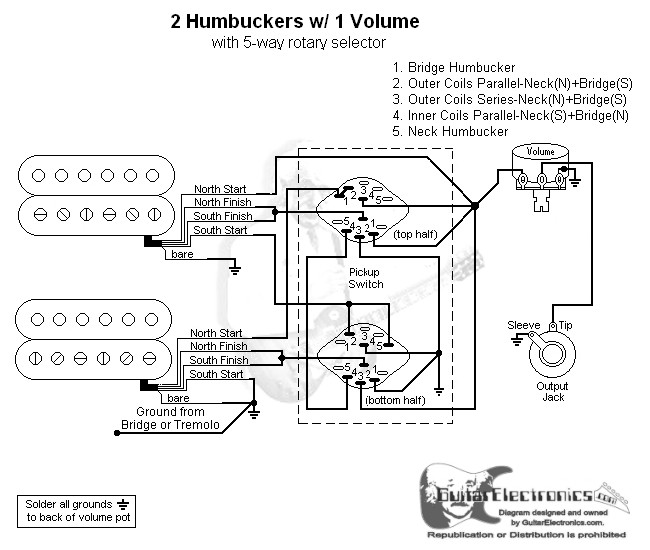

Guitar wiring diagram with 2 humbuckers, 5-way 4-pole rotary switch, one volume control. Same 5 pickup configurations as the PRS 5 way rotary switching. Note: If you are using standard humbuckers (seymour Duncan, Gibson, etc.) you must mount the pickups witht the screw pole coils as shown in the diagram to get "Inner" and "Outer" coils in switch positions 2, 3 & 4. Custom 5-way switching: 1. Bridge Humbucker 2. Outer Coils Parallel-Neck(N)+Bridge(S) 3. Outer Coils Series-Neck(N)+Bridge(S) 4. Inner Coils Parallel-Neck(S)+Bridge(N) 5. Neck Humbucker. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.
