2 Humbuckers/5-Way Lever Switch/1 Volume/1 Tone/02

Name: 2 Humbuckers/5-Way Lever Switch/1 Volume/1 Tone/02
Brand: GuitarElectronics.com
SKU: WD2HH5L11_02
Availability: OutOfStock
Rating: 5 (2 reviews)

MSRP:

$0.00

(You save )

(2 reviews) Write a Review

2 Humbuckers/5-Way Lever Switch/1 Volume/1 Tone/02

Description

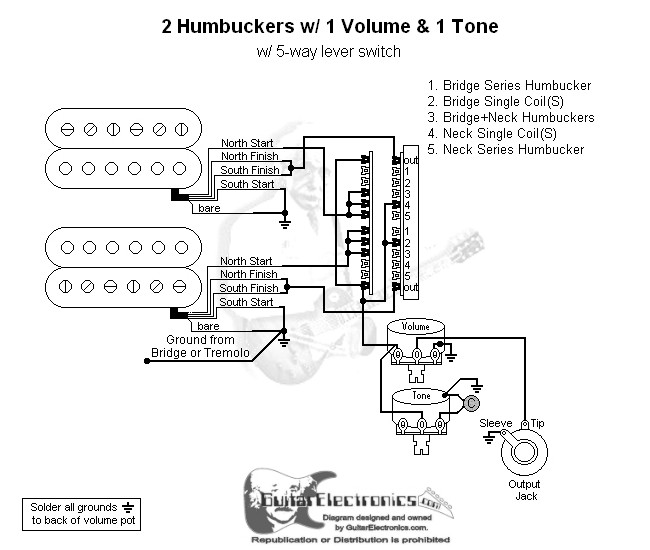

Guitar wiring diagram with 2 humbuckers, 5-way 4-pole lever switch, one volume and one tone control. Custom 5-way switching: 1. Bridge Series Humbucker 2. Bridge Single Coil (South) 3. Bridge Humbucker + Neck Humbucker 4. Neck Single Coil (South) 5. Neck Series Humbucker. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.

View related parts for this diagram below.

Additional Details

SKU:: WD2HH5L11_02
UPC:

2 Reviews

5
#2 5 way double humbucker wiring

Published by hellbentmel on Oct 16th 2023

got a build kit ,1/2 finished from a good friend,put a Floyd Rose copy on the tail with that wiring setup , super clean !!! the variety of diagrams offered takes hot- rodding the axe to new levels!Thanx !
4
Sounds...AMAZING!!!!

Published by Utah Wandering on Sep 2nd 2023

The only reason why this got 4 out of 5 stars is because the humbuckers are not labeled bridge and neck. I wired them backwards and took it personal. I upgraded my 2019 Squier Contemporary Strat's components and wired in a Fender 5 way Superswitch. The humbuckers I installed were the Wilkinson M Series Classic Overwound, and this diamgram was amazing. Thank you www.Guitarelectronics.com for great instructions!
