Product Description

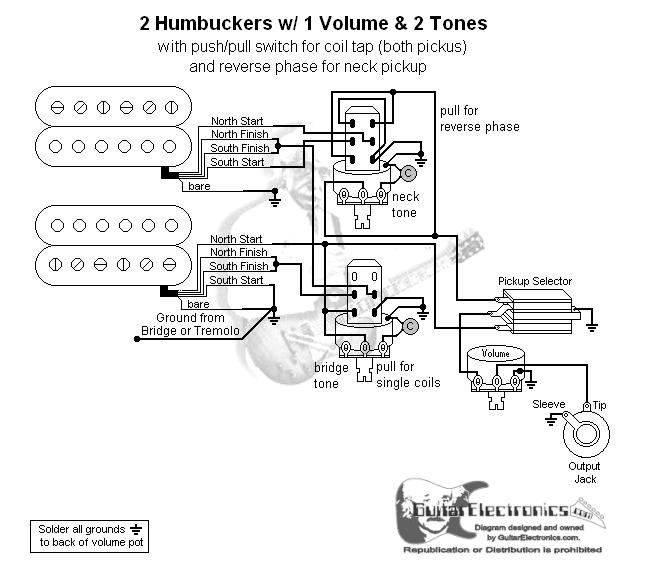

Guitar wiring diagram with 2 humbuckers, 3-way toggle switch, one volume and two tone controls, plus one push/pull switch to select humbucker or single coil mode and one push/pull switch to select reverse phase (neck). Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.
