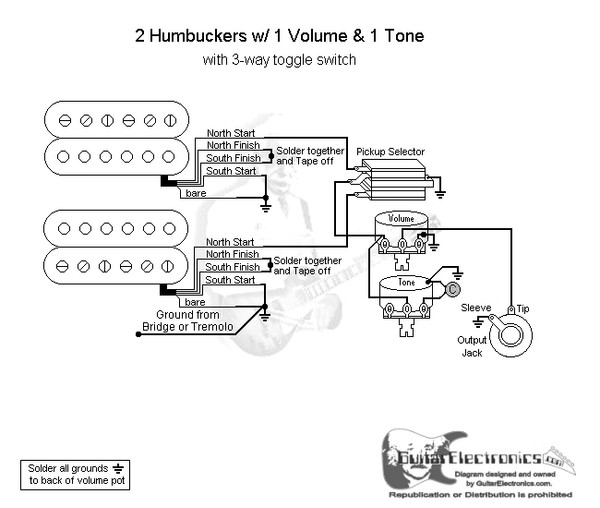

Basic guitar wiring diagram with 2 humbuckers, 3-way toggle switch, one volume and one tone control. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.
Thank you
I hope it works for a kit guitar I'm building that didn't come with any instructions. Just for clarification, I counted 8 grounds in the diagram. Do they ALL have to be soldered together on the back of the volume pot? I don't remember seeing that in any of my other guitars.
I use it all the time for all of thr info and data
Done in 5 mins thanks :-)
Fixed my guitar because of this
I like that you have diagrams for all combinations aswell.
By far the best selection and easy to follow.
Very easy to understand,
I am electronics guy by trade and I have learned to appreciate the simplest drawings I can find. Makes my job much easier :)
