2 Humbuckers/3-Way Lever Switch/2 Volumes/1 Tone

Description

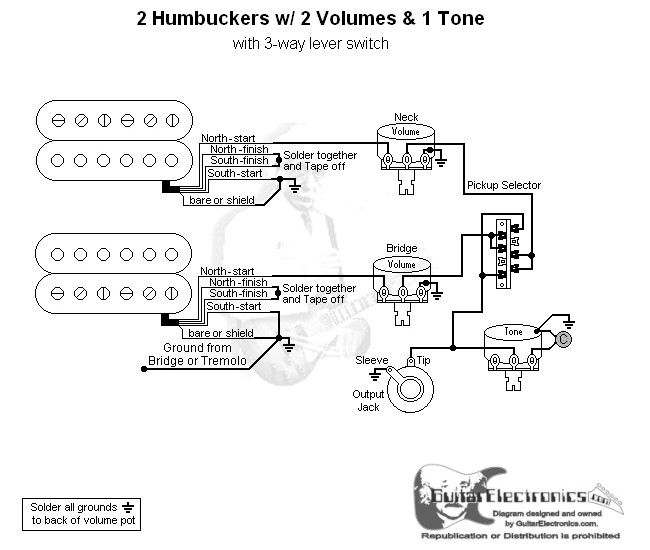

Basic guitar wiring diagram with 2 humbuckers, 3-way lever switch, two volumes and one tone control. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.

View related parts for this diagram below.
