Description

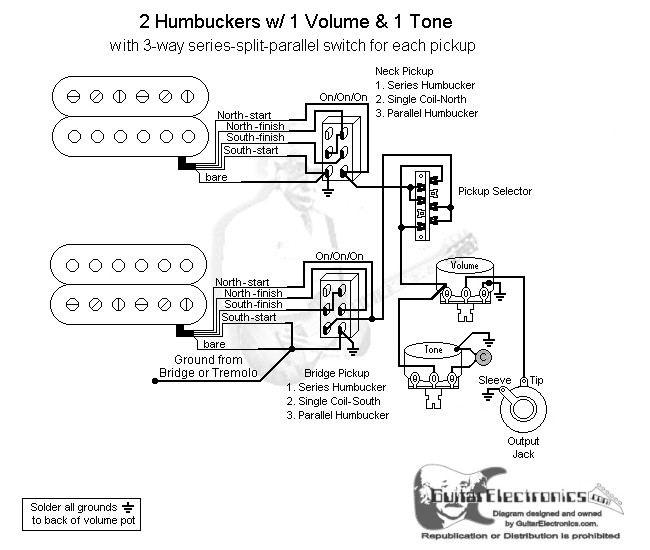

Guitar wiring diagram with 2 humbuckers, 3-way lever switch, one volume and tone control and two mini switches. Neck pickup mini toggle switch selects between Series/Single Coil (North)/Parallel. Bridge pickup mini toggle switch selects between Series/Single Coil (South)/Parallel. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.
