2 Humbuckers/3-Way Lever Switch/1 Volume/1 Tone

MSRP:
$0.00
(You save )
(3 reviews) Write a Review
2 Humbuckers/3-Way Lever Switch/1 Volume/1 Tone

Description

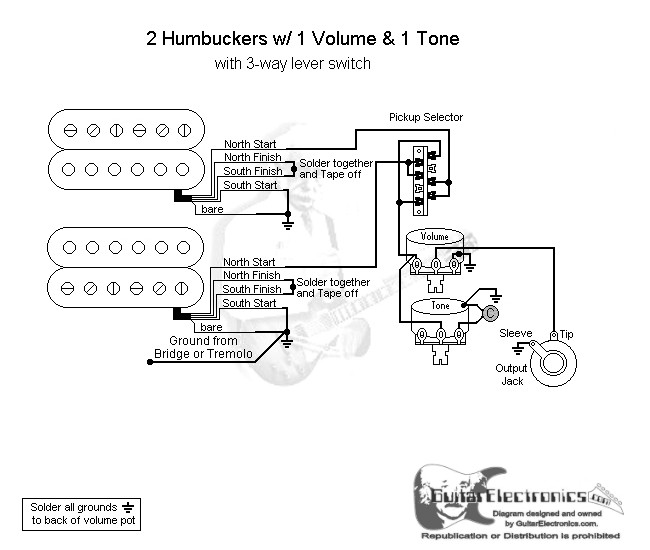

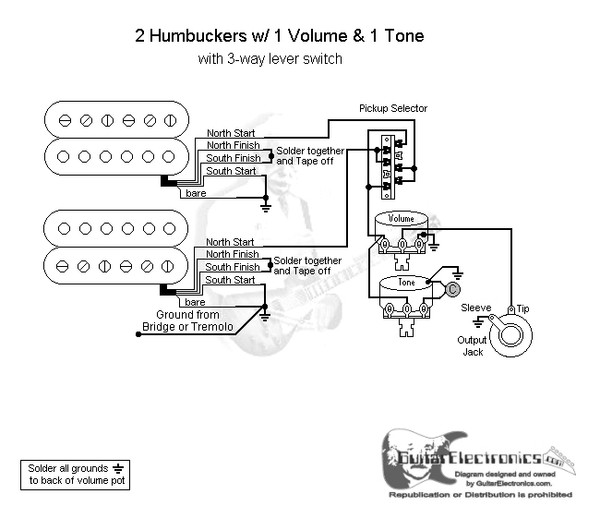

Basic guitar wiring diagram with 2 humbuckers, 3-way lever switch, one volume and one tone control. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.

View related parts for this diagram below.

Additional Details

SKU:
WD2HH3L11_00

3 Reviews

  • 5
    so awesome

    Published by john salazar on Aug 17th 2015

    i am a beginner begging for this stuff your web site is the best site of the whole internet better then that the universe!

  • 5
    good diagram..

    Published by jerry bilby on Aug 14th 2014

    tone control much more responsive.

  • 5
    Very nice

    Published by JJ on Apr 28th 2012

    clear and easy to read
