- 1 Humbucker/1 Single Coil/5-Way Lever Switch/1 Volume/1 Tone/01
1 Humbucker/1 Single Coil/5-Way Lever Switch/1 Volume/1 Tone/01
$0.00
Product Description

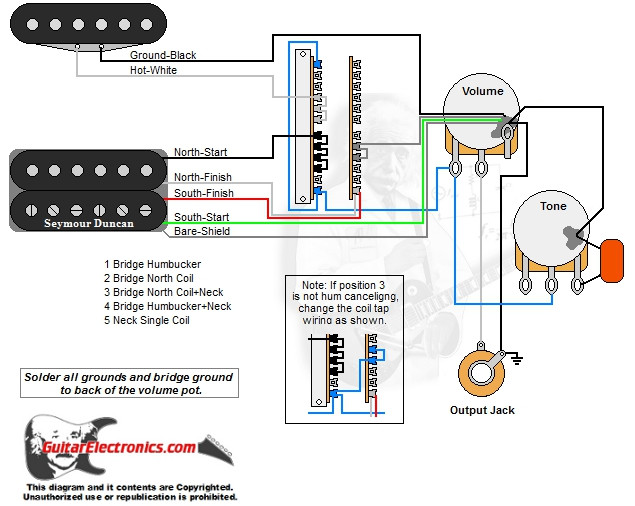

1 humbucker, 1 single coil, 5-way lever switch, 1 volume, 1 tone. Humbucker is coil split in switch positions 2 & 3. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size. | ![]() |
