1 Humbucker/1 Single Coil/3-Way Lever Switch/1 Volume/1 Tone/00

GuitarElectronics.com

SKU:
WDHS3L11_00
MSRP:
$0.00
(You save )
(1 review) Write a Review
1 Humbucker/1 Single Coil/3-Way Lever/1 Volume/1 Tone/00

Description

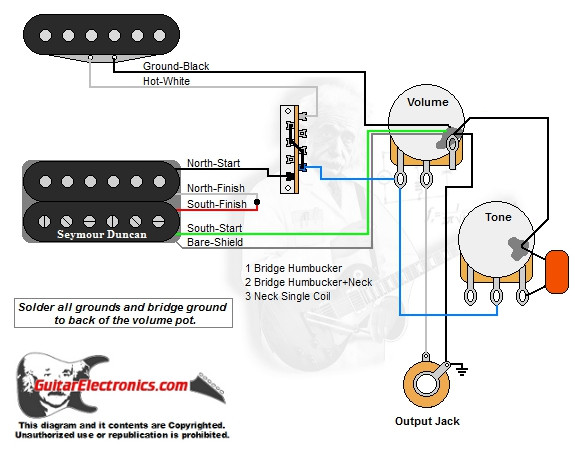

1 humbucker, 1 single coil, 3-way lever switch, 1 volume, 1 tone. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.

Download PDF Version Download PDF version.

 Click to view wire color codes for all brands of humbuckers.
