1 Humbucker/1 Single Coil/3-Way Lever Switch/1 Volume/02

GuitarElectronics.com

SKU:
WDHS3L10_02
(No reviews yet) Write a Review

1 Humbucker/1 Single Coil/3-Way Lever Switch/1 Volume/02

1 Humbucker/1 Single Coil/3-Way Lever/1 Volume/02

Description

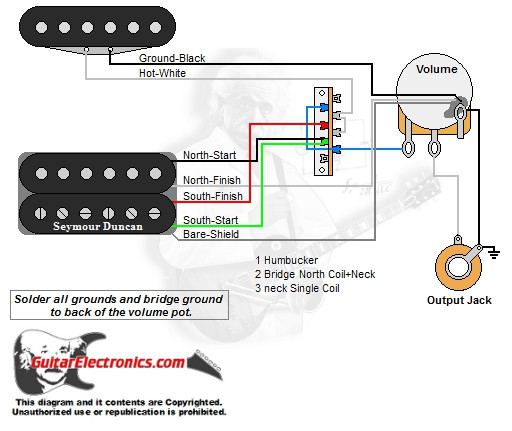

Guitar wiring diagram with 1 humbucker, 1 single coil, 3-way lever switch & 1 volume. Humbucker is coil split (North coil) in middle switch position.
