Description

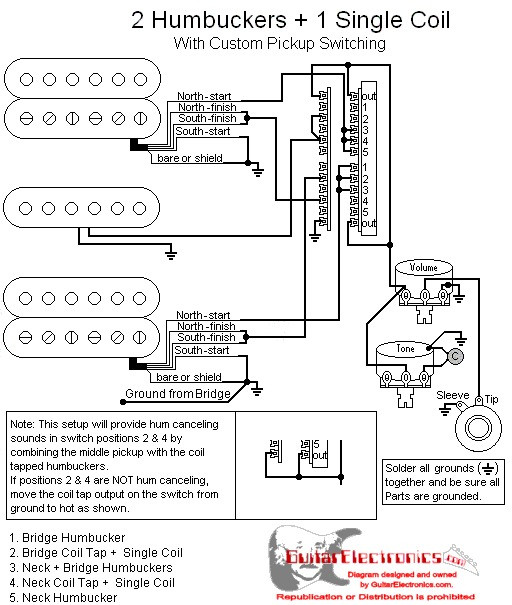

2 Humbuckers, one single coil, custom 5-way/4-pole switch, 1 volume, 1 tone. Typical H/S/H guitar with custom pickup selections. 1. Bridge HB, 2. Bridge SC+Mid SC, 3. Neck HB+ Bridge HB, 4. Neck SC+Mid SC, 5. Neck HB. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.
View related parts for this diagram below.
Additional Details
- SKU:
- WDUHSH5L1102
