Strat with 3 Coils/1 Volume/1 Dual Mode Tone/1 Standard Tone

Name: Strat with 3 Coils/1 Volume/1 Dual Mode Tone/1 Standard Tone
Brand: GuitarElectronics.com
SKU: WDPMT3S5L1V1D1T_1
Availability: OutOfStock

MSRP:

$0.00

(You save )

(No reviews yet) Write a Review

Strat with 3 Coils/1 Volume/1 Dual Mode Tone/1 Standard Tone

Additional Details

SKU:: WDPMT3S5L1V1D1T_1
UPC:

Description

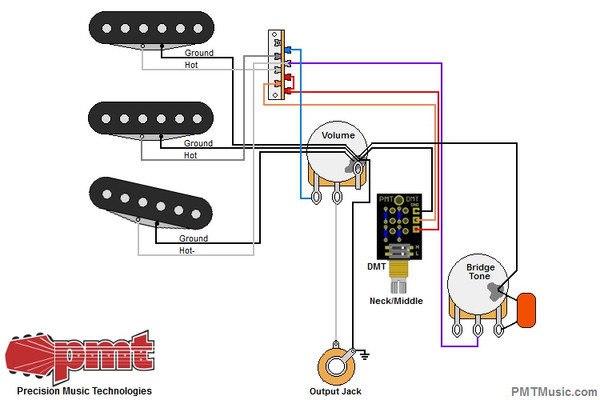

Strat style guitar wiring diagram with 3 single coils and 5-way sever switch and 1 DMT dual mode tone control for the neck and middle pickups plus a standard tone control for the bridge pickup. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© PMT Music Products LLC. Unauthorized use prohibited. Click diagram to view full size.
