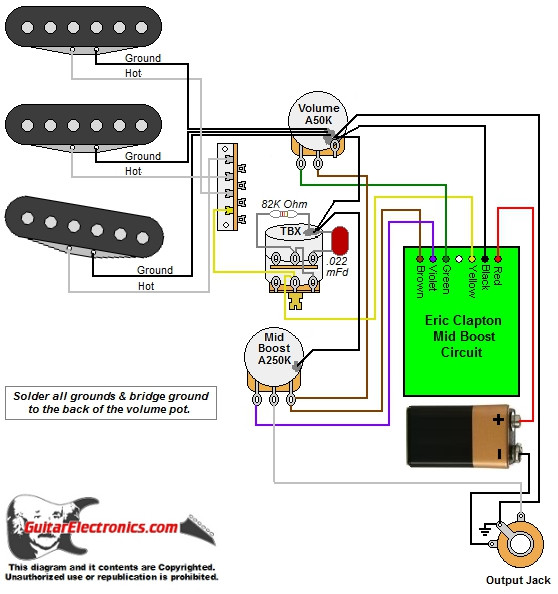

Overview Reviews Product Description Strat wiring diagram with three single coils, 5-way lever switch, 1 volume, 1 TBX tone control and the Eric Clapton mid boost circuit with mid boost control. Traditional wiring for the Eric Clapton Signature Stratocaster as well as other models that use the Fender mid boost circuit. Click diagram image to open/view full size version. Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized replication is prohibited. Product Videos Custom Field Product Reviews Write a Review Write a Review × GuitarElectronics.com Strat w/ Eric Clapton Mid Boost Circuit & TBX Tone Control Rating * Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best) Name Review Subject * Comments *
