Humbucker Series/OFF/Parallel

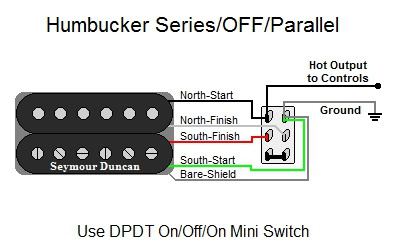

This guitar wiring modification shows how to use a three position double pole-double throw On/Off/On mini switch to select series or parallel modes plus turn the pickup off in the middle position eliminating the need for a pickup selector switch. In humbucker mode, the output will be strong with a smooth attack and a deep tone. In parallel mode, the sound will be very clean and sparkly with lower output. Note: Both series and parallel modes will be hum canceling.

Click diagram image to open full size version.  Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies to do the job right. Copyright© GuitarElectronics.com LLC. Unauthorized republication is prohibited.
