HSH Guitar with V-Treb Volume & HCP Humbucker Control

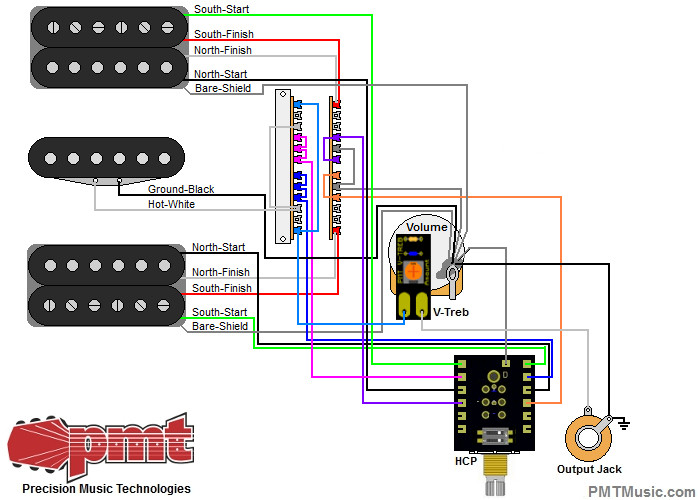

HSH guitar wiring diagram with 2 humbuckers+1 single coil and 5-way super switch with 1 V-Treb volume and 1 HCP Humbucker Control Pot. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© PMT Music Products LLC. Unauthorized use prohibited. Click diagram to view full size.
