Product Description

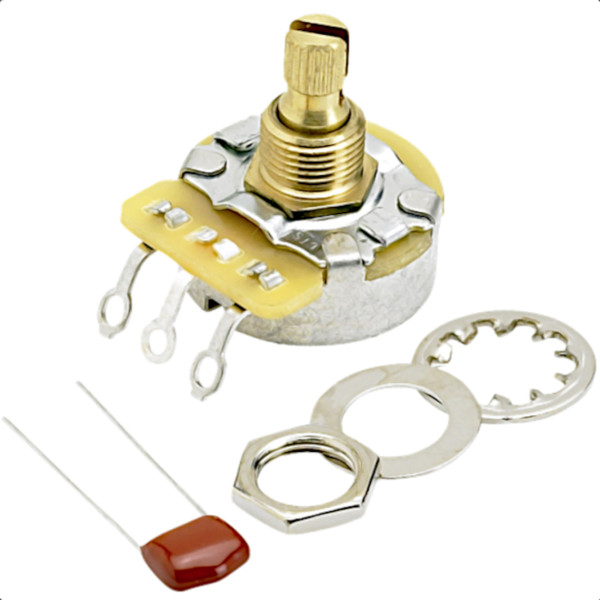

Original Fender No Load Pot with fine spline split knurled shaft. Works like a standard 250K pot from 1-9 but "clicks" in at 10 (full clockwise) and takes the pot out of the circuit entirely. This eliminates the path to ground that exists with standard pots in the full setting. The result is increased power and brightness at the "full treble" setting. Note: No Load pots are designed to expand the range of the tone control and can not be used as standard volume controls. Fender part number 0990832000.
| Ohms: | 250K-NL | Taper: | Audio | |
| Tolerance: | +/-15% | Pot Diameter: |
15/16" (.9375") | |
| Shaft Material: | Brass | Threaded Shaft Length: | 1/4" (.25") | |
| Shaft Type: | Split Knurled | Threaded Shaft Material: | Brass | |
| Spline Count (Type): |
24 (Fine) | Threaded Shaft Diameter: |
3/8" (.375") | |
| Shaft Height: | 3/8" (.375") | Thread Pitch: |
3/8-32NEF |
Product Videos
Custom Field
Product Reviews
1 Review Hide Reviews Show Reviews
-
A Satisfactory Mod
Installing this in your Strat will certainly lend to your unloaded tone. It "clicks" into place gently at 10 and essentially takes all of its' resistance out of the circuit, leading to a tone with more presence and clarity. An awesome mod if you are tweaking your tone to take it over the top.
