Product Description

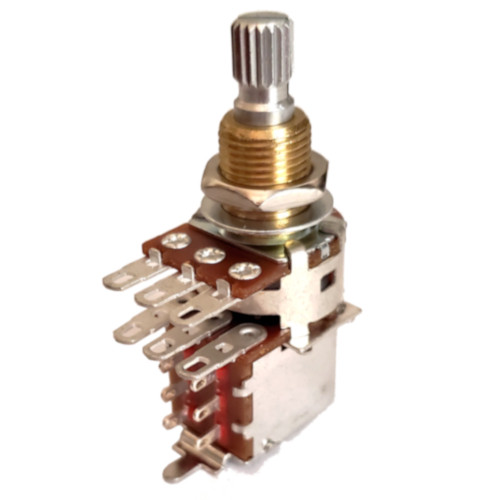

Bourns Pro Audio Stereo/Dual Gang 500K ohm audio taper guitar pot with push/pull switch. Super tough construction and smooth feel in a compact size. Use for Stereo and Double Neck control functions. Also can be used to switch between 500K and 250K audio taper by combining the two halves of the pot. switching and other functions.
Bourns Push/Pull Pot Specs
Ohms (Top): 500K | Taper (Top): Audio | Tolerance (Top): +/-15%
Ohms (Bottom): 500K | Taper (Bottom ): Audio | Tolerance ( Bottom ): +/-15%
Shaft Material: Aluminum | Shaft Type: Split Knurled | Spline Count(Type): 18 (Coarse)
Threaded Shaft Length: 3/8" (.375") | Threaded Shaft Material: Brass
Threaded Shaft Diameter: 3/8" (.375") | Spline Height: 3/8" (.375")
Thread Pitch: 3/8-32NEF | Required Cavity Depth: 1.05"
