Product Description

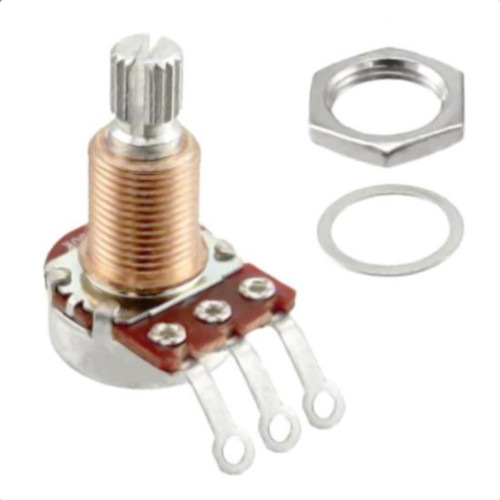

Bourns Pro 500K Linear taper control pot for guitar and bass volume and tone controls. Solid brass threaded shaft provides a super smooth rotation feel and extra long service life. Split knurled shaft for use with push-on style knobs.
| Ohms: | 500K | Taper: | Linear | |
| Tolerance: | +/-20% | Pot Diameter: |
17 mm (.669") | |
| Shaft Material: | Aluminum | Threaded Shaft Length: | 3/8" (.375") | |
| Shaft Type: | Split Knurled | Threaded Shaft Material: | Brass | |
| Spline Count(Type): | 18 (Coarse) | Threaded Shaft Diameter: |
3/8" (.375") | |
| Spline Height: | 3/8" (.375") | Thread Pitch: |
3/8-32NEF |
