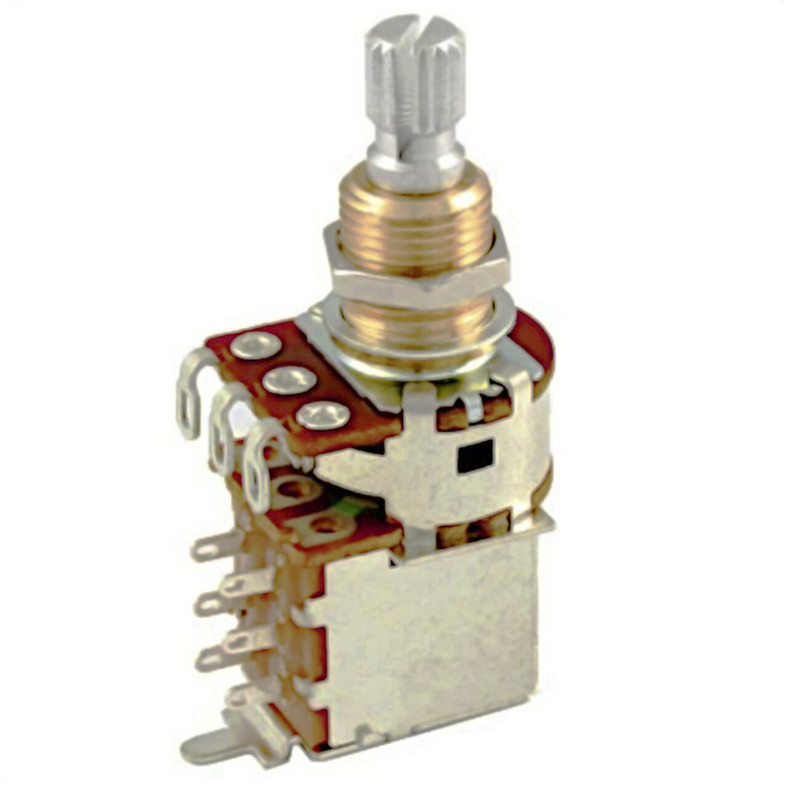

Bourns 500K Audio Taper Guitar Pot w/ Push-Pull Switch

MSRP:
$7.49
(You save )
(6 reviews) Write a Review
Bourns 500K Audio Guitar Pot w/ Push-Pull Switch
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 5 - 9 and get $0.15 off
  • Buy 10 or above and get $0.25 off

Description

Bourns 500K Audio taper guitar pot with push/pull switch. Super tough construction and smooth feel in a compact size. Highest quality push/pull pot available. Use for coil splitting, phase, series/parallel and other functions.

Bourns Push/Pull Pot Specs
Ohms: 500K   Taper: Audio
Tolerance: +/-15%   Pot Diameter:

Shaft Material: Aluminum   Threaded Shaft Length: 3/8" (.375")
Shaft Type: Split Knurled   Threaded Shaft Material: Brass
Spline Count(Type): 18 (Coarse)   Threaded Shaft Diameter:
 3/8" (.375")
Spline Height: 3/8" (.375")   Thread Pitch:
 3/8-32NEF
Required Cavity Depth: 1.05"

Additional Details

SKU:
CPPB500

6 Reviews

  • 5
    A great upgrade for an old Jackson

    Published by Bill Bats on Nov 5th 2022

    I installed this in my 96 Jackson EMG HZ guitar replacing both pots that needed to be done. It sounds great. The push-pull coil splitting is nice to have. It was only a few bucks more and was worth it. Makes my Jackson a little more versatile.

  • 5
    Great way to add a tone knob without drilling a hole

    Published by Steve on Nov 9th 2020

    Great

  • 5
    Volume/tone in one pot

    Published by steven bertetta on Oct 3rd 2020

    I used this on my Jackson which had only a volume I used this push/pull pot with a treble bleed When the pot is pushed in it’s just a volume with treble bleed When it’s pulled out it’s a volume/tone with treble bleed I would recommend this mod for anyone looking for more versatility

  • 4
    Great pot but fiddly

    Published by Neil Charkow on Aug 5th 2020

    I consider my soldering skills up to scratch but I struggled soldering small pup wires to the DPDT tabs. I hindsight, I would have soldered lead wires to them and then connected the lead wires to the pup wires. Overall, very well made and great taper.

  • 5
    solid pot

    Published by Tom on Oct 2nd 2017

    Exactly what I wanted.

  • 5
    Perfect

    Published by Justin Charles on Aug 31st 2017

    I used this as a tone pot to also split coils. Good quality and performance.
