Product Description

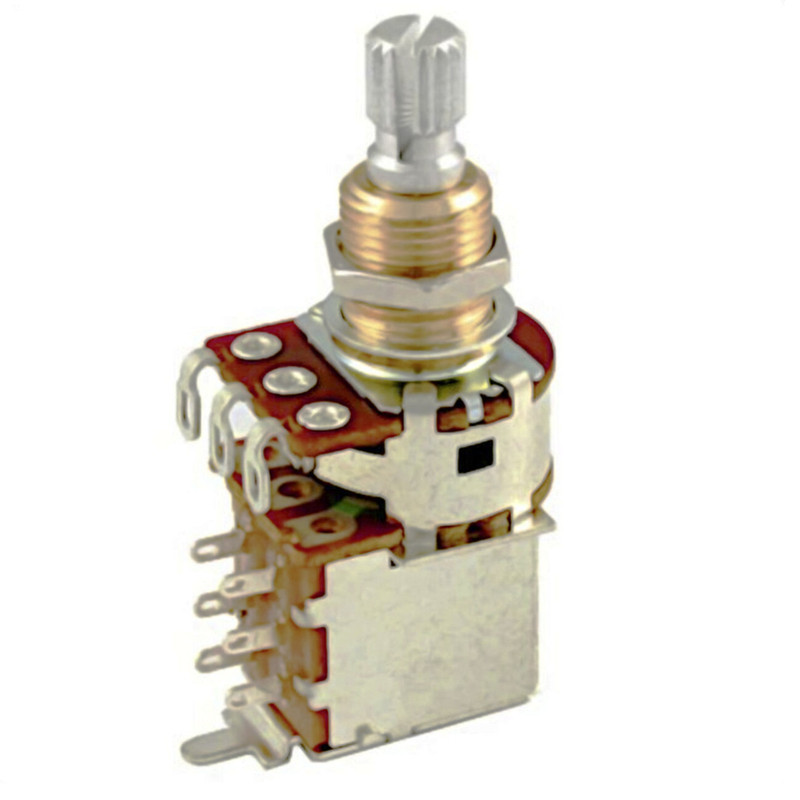

Bourns 25K audio taper control pot for electric guitar and bass with double pole/double throw (DPDT) push pull switch. Use with EMG and other active pickups for coils splitting and other functions.
| Ohms: | 25K | Taper: | Audio | |
| Tolerance: | +/-20% | Pot Diameter: |
17mm (.669") | |
| Shaft Material: | Aluminum | Threaded Shaft Length: | 3/8" (.375") | |
| Shaft Type: | Split Knurled | Threaded Shaft Material: | Brass | |
| Spline Count(Type): | 18 (Coarse) | Threaded Shaft Diameter: |
3/8" (.375") | |
| Spline Height: | 3/8" (.375") | Thread Pitch: |
3/8-32NEF | |
| Required Cavity Depth: | 1.05" |
