Description

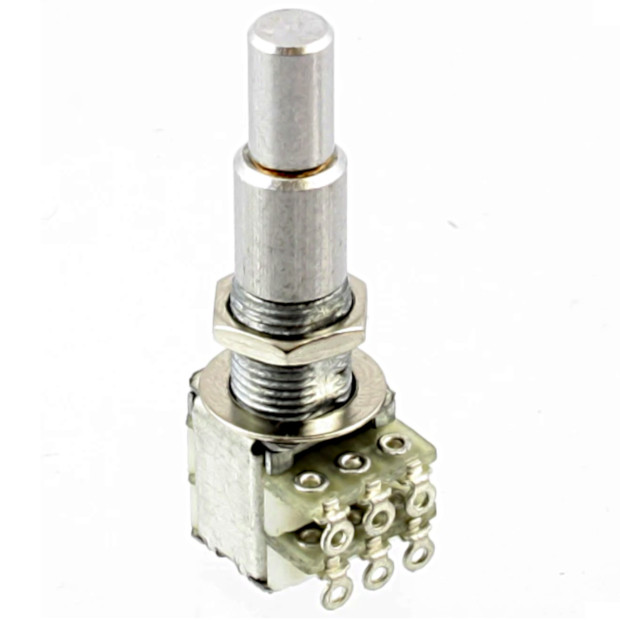

Alps dual 500K audio taper stacked concentric pot. Stack two 500K pots in one hole. Compact size is ideal for use in small control cavities and other locations where space is limited.
| Ohms: | Dual 500K | Top Shaft Diameter: | 6mm | |
| Taper: | Audio | Bottom Shaft Diameter: | 8mm | |
| Shaft Material: | Aluminum | Threaded Shaft Length: | 8.75mm | |
| Shaft Type: | Solid | Threaded Shaft Material: | Die-Cast | |
| Spline Count(Type): | 18 (Coarse) | Threaded Shaft Diameter: |
8.75mm | |
| Spline Height: | 3/8" (.375") | Thread Pitch: |
Metric | |
| Pot Dimensions: | 12.75mm x 12.75mm x 13mm | |||
Additional Details
- SKU:
- CPAS500
