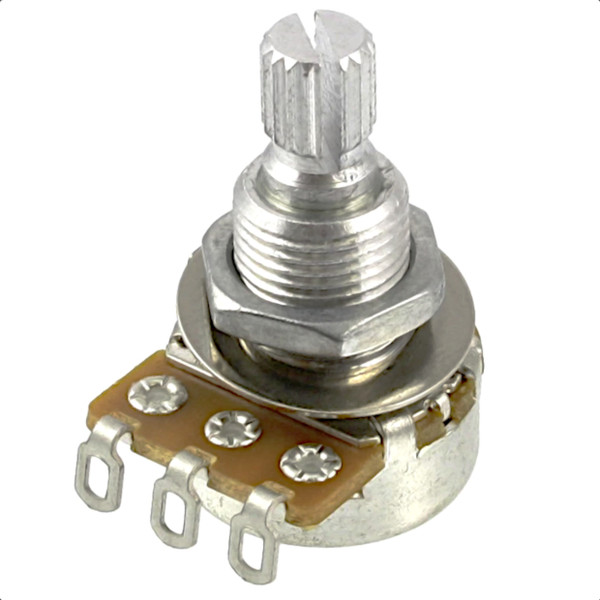

Alpha 100K audio taper control pot for electric guitar and bass. For use with active EQ and preamp systems. Compact size for use in small control cavities.
| Ohms: | 100K | Taper: | Audio | |
| Tolerance: | +/-20% | Pot Diameter: |
17mm (.669") | |
| Shaft Material: | Aluminum | Threaded Shaft Length: | 3/8" (.375") | |
| Shaft Type: | Split Knurled | Threaded Shaft Material: | Die-Cast | |
| Spline Count(Type): | 18 (Coarse) | Threaded Shaft Diameter: |
3/8" (.375") | |
| Spline Height: | 3/8" (.375") | Thread Pitch: |
1/4-32NEF |
New to installing pots, not sure if this was what I needed to replace my scratchy treble pot on my Fender jazz bass with pre amp. I figured for the cost, it wouldn't hurt to try it. Well I needed a solid shaft pot, but my knob with set screw tightened up just fine on this splined shaft. I got the same ohms readings as my old pot, so I installed it. Works great. Feels great with nice amount of turning resistance.
