2 Humbuckers/3-Way Toggle Switch/1 Volume

MSRP:
$0.00
(You save )
(3 reviews) Write a Review

Description

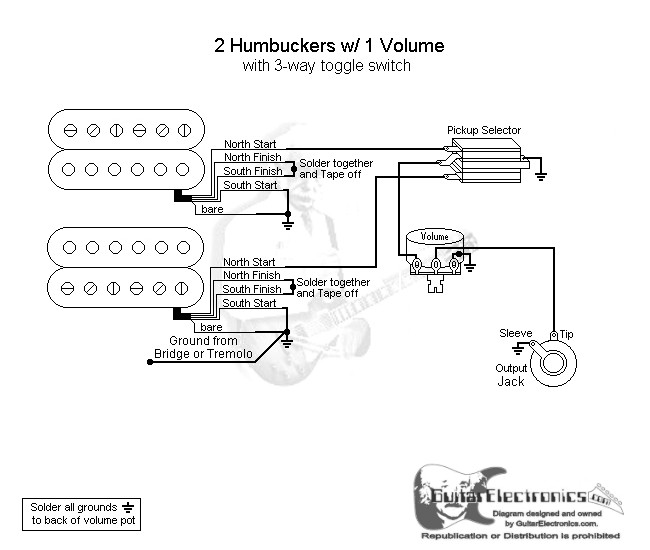

Basic guitar wiring diagram with 2 humbuckers, 3-way toggle switch, one volume control and no tone control. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.
