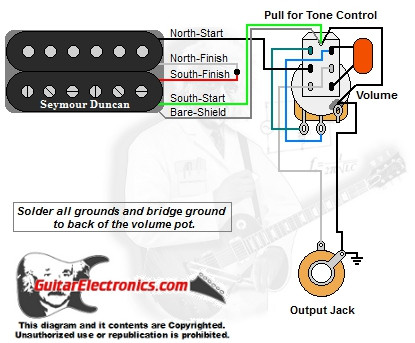

    Guitar wiring diagram with one humbucker and one volume control. Push pull switch on volume converts volume pot to a tone pot. With the the pot in tone mode (up) the volume will be 100% full on. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.

    Download PDF Version Download printable PDF version.

    		 Click to view wire color codes for all brands of humbuckers.
