1 Humbucker/1 Volume/1 Tone/Series-North-Parallel

Additional Details

SKU:
WD1H11_07

Description

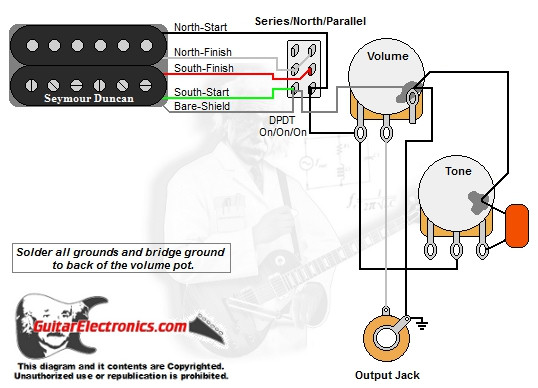

Guitar wiring diagram with one humbucker, one volume and one tone control and a mini switch that selects: series humbucker/single coil North/parallel humbucker. Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.

Download PDF Version Download printable PDF version.

 Click to view wire color codes for all brands of humbuckers.

Additional Details

SKU:
WD1H11_07

1 Review

  • 5
    Nice little switch

    Published by Sam on Jul 25th 2021

    It is my transmission. High gear is heavy metal. Mid gear is my classical stuff. Low gear is R&B. Thank you GuitarElectronics.com
