1 Humbucker/1 Single Coil/3-Way Lever/1 Volume/2 Tones/00

Description

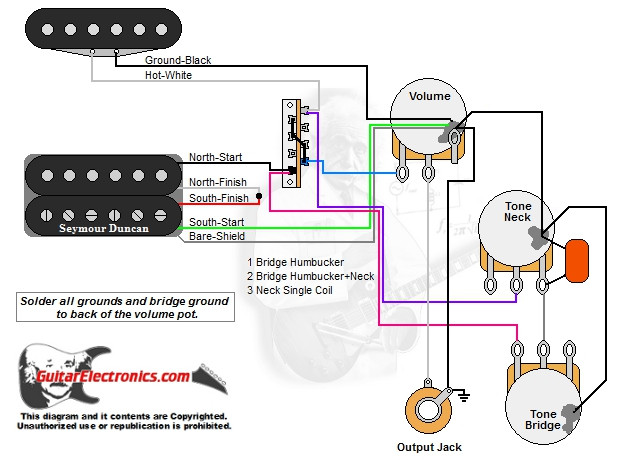

1 humbucker, 1 single coil, 3-way lever switch, 1 volume, 2 tones. Ready to start? Don't forget the Wire, Solder, Shielding & Supplies. Copyright© GuitarElectronics.com LLC. Unauthorized use prohibited. Click diagram to view full size.  Download PDF Version Download PDF version.

 Click to view wire color codes for all brands of humbuckers.



Additional Details

SKU:
WDHS3L12_00
