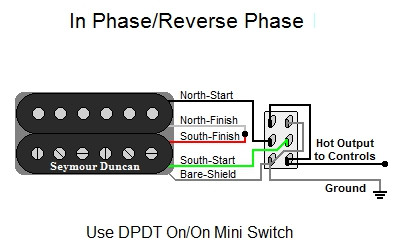

This guitar wiring modification shows how to use a double pole-double throw mini switch (DPDT) to get 2 modes from a humbucker: Standard in-phase mode, and reverse phase mode. If a mini switch can not be used, a standard push/pull switch can also be used. Note: reversing the phase of the pickup will only have an effect on the sound if another pickup is also on. When combining the out of phase pickup with a second pickup, the sound will be hollow and scooped out with reduced bass. When reversing the phase of a standard humbucker, the hum canceling will not be affected (still hum canceling).
Click diagram image to open full size version. Ready to get started? Don't forget the Wire, Solder, Shielding & Supplies to do the job right. Copyright© GuitarElectronics.com LLC. Unauthorized republication is prohibited.
